Full Color Synchronous Novastar Novastar MSD300 Sending Card for LED Display Screen LED Display Screen,indoor and Outdoo

Name: Full Color Synchronous Novastar Novastar MSD300 Sending Card for LED Display Screen LED Display Screenindoor and Outdoo
Brand: JuCaiYuan
Price: 1 USD

Best Full Color Synchronous Novastar Novastar MSD300 Sending Card for LED Display Screen LED Display Screen,indoor and Outdoo wholesale

Brand Name : JuCaiYuan

Model Number : P6 P8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Products Description

Full Color Synchronous Novastar Novastar MSD300 Sending Card for LED Display Screen LED Display Screen,indoor and Outdoo

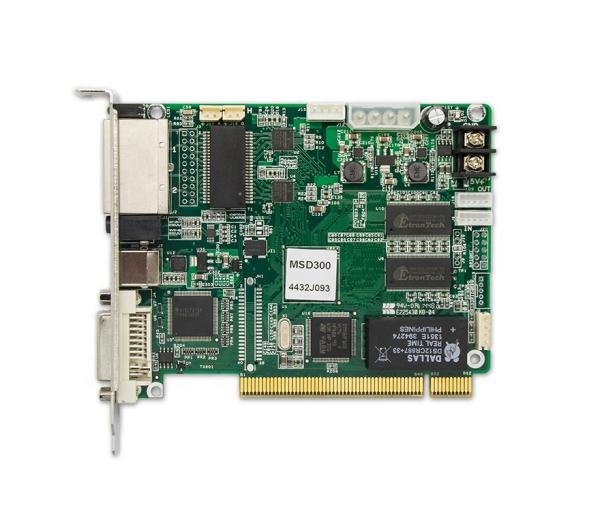

Full Color Synchronous Novastar MSD300 Sending Card For LED Display Screen


The MSD300 is an M3 series sending card from NovaStar. This sending card supports video and audio inputs, and can decode and
 process them before sending them to the LED screen via Ethernet port. A single MSD300 supports resolutions up to 1920×1200@60Hz.
 It communicates with the computer via USB port and is very convenient to use. The MSD300 can be used for rental and fixed
 applications, such as live events, monitoring centers and various sports centers. XI'AN NOVASTAR TEC

Features


  1 × DVI video input and 1 × audio input  2 × Gigabit Ethernet output  1 × light sensor connector  Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process

Specifications

Connector	Connector Name	Description
Input	DVI x1	Single-link DVI input connector
		Supported maximum resolution: 1920×1200@60Hz, downward
		Resolution customizable Maximum width: 3840 pixels Maximum height: 1920 pixels
	AUDIO	Audio input connector


	Audio	Audio input connector
Output	RJ45 ×2	2 Gigabit Ethernet ports
		Maximum loading capacity of a single port: 650,000 pixels
		Supports redundancy between Ethernet ports.
Function	LIGHT SENSOR	Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.
Control	USB	USB control port for connecting to PC
	UART IN	Input / Outdoor Connector for cascading devices
	UART OUT	Output port for cascading devices.
Power	DC3.3-5.5V

Electrical Parameters	Input voltage	DC3.3V-5.5V
	Rated Current	0.5A
Operating Environment	Temperature	-20°C–75°C
	Humidity	0% RH–90% RH, non-condensing
Dimensions	126.1mm ×99.7 mm × 14.0 mm
Net weight	108.7g
Space Requirement	1U
Certifications	RoHS, EMC, FCC, PFOS
Packing Information	Each controller is provided with a carrying case, accessory box and packing box. The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.
	Carrying case	335 mm × 190 mm × 62 mm, craft paper box printed with NOVASTAR
	Accessory box	402 mm× 347 mm × 65 mm, craft paper box 1 × power cord 1 × USB cable 1 × DVI cable
	Packing box	400 mm × 365 mm × 355 mm, craft paper box printed with NOVASTAR
